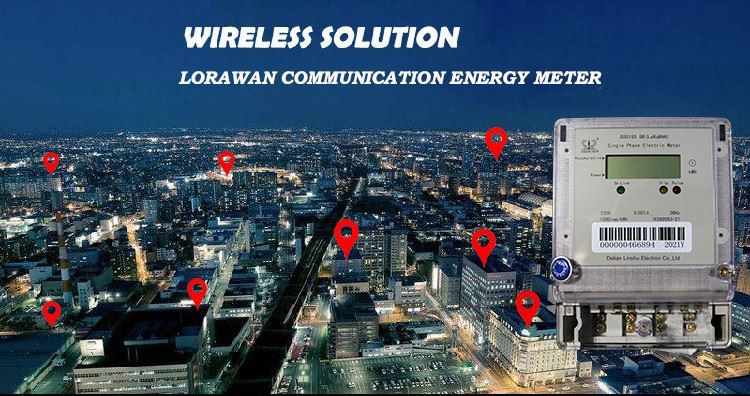

Ib Theem Phab Ntsa Mounted LoRaWAN Hluav Taws Xob Meter

Kev piav qhia

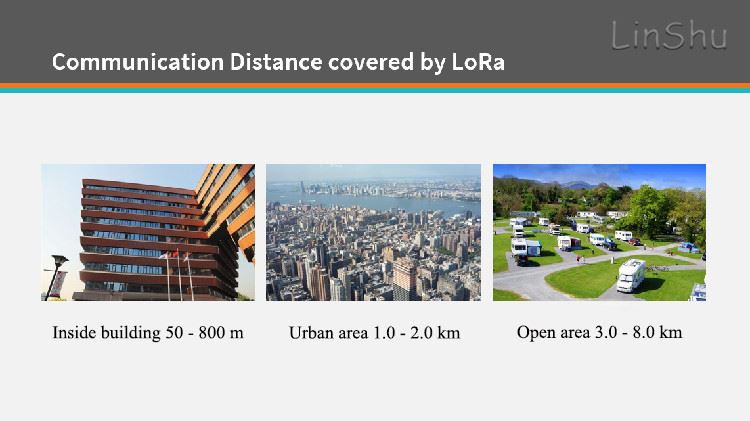

Qhov Ib Theem Phab Ntsa Mounted LoRaWAN Hluav Taws Xob Meter no yog lub ntsuas hluav taws xob nrog kev sib txuas wireless, uas yog siv dav los ntsuas kev siv hluav taws xob hauv tsev lossis chaw tsim khoom. Nws cov qauv thiab cov qauv tsim ua tau raws li cov qauv kev lag luam, thiab nws muaj cov yam ntxwv ntawm lub zog txuag, muaj zog tiv thaiv kev cuam tshuam thiab kev ua haujlwm ruaj khov. Ntxiv mus, nws siv LoRaWAN wireless thev naus laus zis los ua kom qhov kev sib txuas lus ntev dua thiab cov teeb liab ruaj khov, uas tuaj yeem ua tau raws li cov kev xav tau ntawm kev sib txuas lus zoo. Tsis tas li ntawd, cov cuab yeej txhawb nqa ob txoj kev ntsuas, uas yog qhov tsim nyog rau kev siv lub hnub ci zog, thiab siv dav hauv nroog, nyob deb nroog thiab chaw ua haujlwm.

Nta

Qhov Ib Theem Phab Ntsa Mounted LoRaWAN Hluav Taws Xob Meter no yog ua los ntawm cov khoom zoo ABS, nrog rau cov plua plav pov thawj thiab dej tsis zoo, yog li nws muaj cov nplaim hluav taws kub thiab tiv thaiv corrosion, yog li nws tuaj yeem siv rau ntau qhov chaw. Nyob rau tib lub sijhawm, nws tau tswj hwm los ntawm ib qho kev xa tawm ib lub tshuab computer, nruab nrog dual channel digital rho tawm chips, thiab muaj kev tiv thaiv hluav taws xob siab thiab cov yam ntxwv tsis tshua muaj hluav taws xob kom ntseeg tau tias siv tau ruaj khov. Tsis tas li ntawd, nws yog txawm peem rau nrog ib tug backlight LCD zaub. Tom qab ib tug thib ob ntawm lub hwj chim rau, tsis muaj peev xwm yuav tsum tau tag nrho tso tawm ntawm lub screen, thiab lub backlight yog nyob rau. Lub cuab yeej tuaj yeem tso saib lub vijtsam tag nrho rau 10 vib nas this los ntawm kev sib txuas lus.

Main Technical Parameters

1. Hluav taws xob Parameters:

Ua haujlwm voltage: AC 220V ntxiv rau -120 feem pua ​​50Hz;

485 idle voltage: DC 5V;

485 lub peev xwm thauj khoom: Txog 32 RS485 cov khoom siv davhlau ya nyob twg (800 meters);

Kev siv hluav taws xob: Lub zog siv hluav taws xob tsawg dua lossis sib npaug ntawm 3W, pom lub zog tsawg dua lossis sib npaug ntawm 5VA.

2. Wireless Performance Parameters:

Center zaus: 433MHz/470/868/923MHz; LoRaWAN tus qauv thoob ntiaj teb;

Modulation technology: Linear zaus modulation, kis spectrum modulation;

Bandwidth: 125kHz / 250kHz;

RF zog: 20dBm (100mW);

Txais rhiab heev: -143dBm @SF12/BW 125KHz.

3. Kev Nyab Xeeb Kev Ua Haujlwm:

Kev cuam tshuam voltage: 2kV;

Ua haujlwm siab: 2kV.

4. Electromagnetic Compatibility:

Electrostatic tawm: 4kV;

Hluav taws xob ceev ceev: 2kV (lub zog mov voj), / 2kV (lub teeb liab voj);

Surge voltage: 2kV (hom txawv)

5. Kev Siv Ib puag ncig:

Kub: -25 degree C ~ ntxiv 60 degree C;

Humidity: txheeb ze av tsawg dua lossis sib npaug li 95 feem pua.

6. Cov ntaub ntawv khaws cia: Lub sijhawm khaws cov ntaub ntawv ntau dua lossis sib npaug li 10 xyoo txij li lub hwj chim tawm.

7. Kev sib txuas lus Interface: tus qauv RS485;

Teem lub chaw nres nkoj 2400bps hauv zos;

Downlink chaw nres nkoj kev sib txuas lus: Baud tus nqi tuaj yeem teeb tsa (piv txwv li: 1200bps, 2400bps, 4800bps, 9600bps, 19200bps).

Ceeb toom

1. Hais txog AC/DC Zog Meter

Feem ntau hais lus, alternating tam sim no lossis ncaj qha tam sim no yuav tsum yog thawj yam. Peb kuj muaj DC meter thaum koj xav tau ntsuas Direct Current.

2. Hais txog Kev Ua Haujlwm

(1) Raws li cov ntsiab lus txwv, txhua txoj haujlwm tau hais los saum toj no yog lub luag haujlwm tseem ceeb.

(2) Lwm yam haujlwm xws li TOU, tswj kev thauj khoom, cov sijhawm ua phooj ywg, RTC, thov xa mus rau cov kev qhia tshwj xeeb lossis tiv tauj nrog peb pab pawg muag khoom.

3. Hais txog Daim Ntawv Thov

(1) Cov ntawv thov tsuas yog ua piv txwv, rau qhov ua tau zoo, lub ntsuas hluav taws xob kuj tuaj yeem siv rau lwm yam kev siv.

(2) Zoo siab txais tos rau kev nug yog tias koj tsis paub meej txog cov haujlwm lossis daim ntawv thov, peb muaj kev pabcuam dawb.
