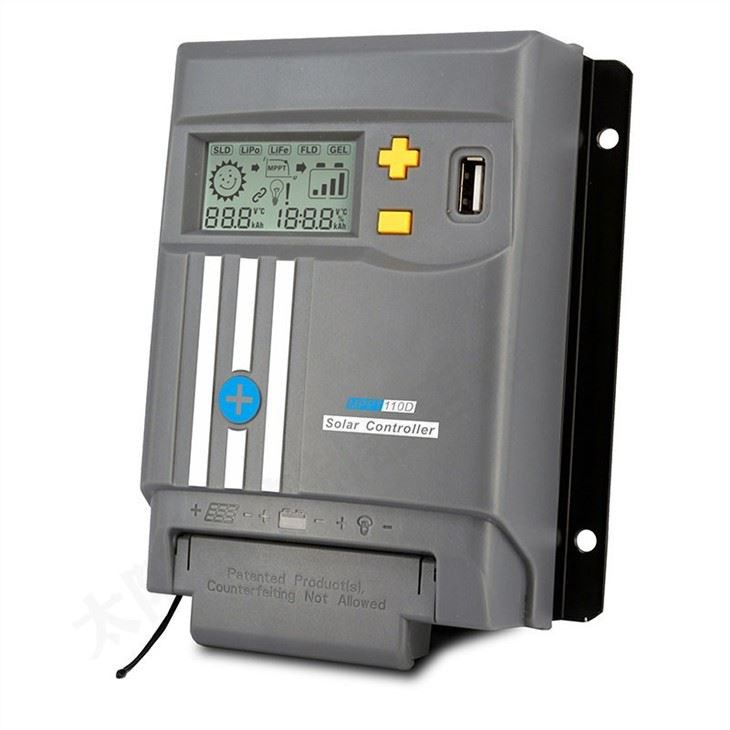

MPPT Solar Charge Controller
Lub MPPT hnub ci them nyiaj tswj yog ib yam ntawm photovoltaic fais fab tiam them converter, txhawb 12V / 24V voltage thiab lead-acid lithium roj teeb. Nws yog tus nqi qis thiab tuaj yeem tswj tau chaw taws teeb, muaj kev sib txuas lus xiav hniav thiab kev sib txuas lus wifi rau koj xaiv. Yooj yim rau kev tswj thiab siv.
Muaj nuj nqi
Lub MPPT hnub ci them nyiaj tswj yog ib yam ntawm photovoltaic fais fab tiam them converter, txhawb 12V / 24V voltage thiab lead-acid lithium roj teeb. Nws yog tus nqi qis thiab tuaj yeem tswj tau chaw taws teeb, muaj kev sib txuas lus xiav hniav thiab kev sib txuas lus wifi rau koj xaiv. Yooj yim rau kev tswj thiab siv.
Vim li cas thiaj xaiv MPPT?
* MPPT yog kwv yees li 30 feem pua ntau dua li ib txwm PWM
* Taug qab kev ua tau zoo tuaj yeem ncav cuag 99.5 feem pua
* Them efficiency txog li 97 feem pua
* Peak input voltage 100V
* Nrog rau ntau hom kev teeb tsa, qhov kev hloov pauv tau nce mus txog 97 feem pua
* Kev txheeb xyuas qhov tseeb ntawm qhov system voltage

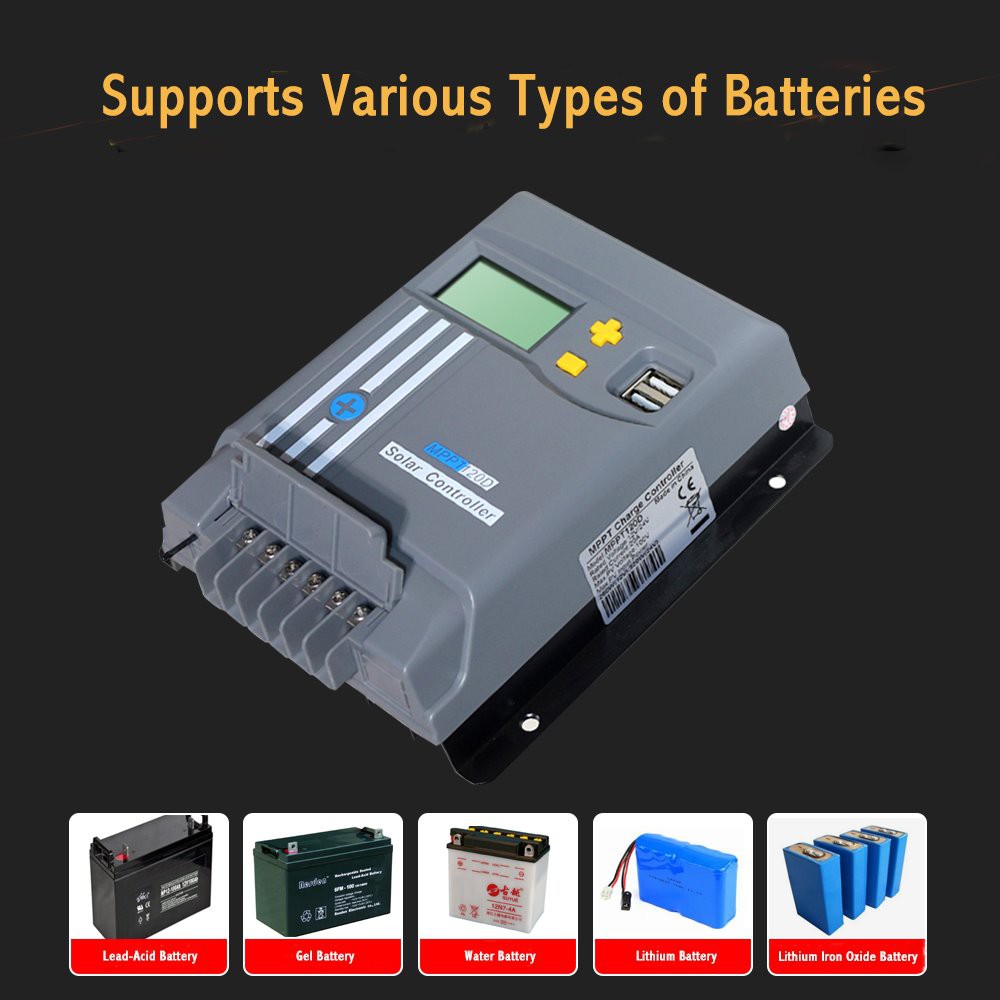

* Txhawb txhua hom roj teeb
* Siv high-power point tracking thev naus laus zis tuaj yeem txhim kho kev siv tus nqi ntawm lub zog tsim hluav taws xob thiab txhim kho kev hloov pauv kev ua haujlwm
* Lub zog txuag hluav taws xob aluminium kub dab dej. Lub zuag qhia tag nrho aluminium kub dissipation ntaus ntawv yog lengthened thiab thickened nrog ib tug multi-ntug tsim, uas ua rau kom tshav kub dissipation cheeb tsam thiab muaj ib tug muaj zog tshav kub dissipation muaj peev xwm.
* USB tso zis interface. Them lub xov tooj ntawm tes, IPAD, thiab lwm yam khoom siv digital, nrog rau cov khoom siv DC xws li DC qhov muag teev txhua lub sijhawm, nyob qhov twg.
* Kev tswj chaw taws teeb los ntawm APP.
* Ob txoj kev sib txuas lus, hom hniav xiav, thiab hom wifi, rau koj xaiv.
Specifications:
Hom | MPPT 110D | MPPT 120D | MPPT 130D | MPPT 140D | |
Rated them tam sim no | 10A | 20A | 30A | 40A | |
Rated voltage | 12 V / 24 V | ||||
Roj teeb voltage | 8-32 V | ||||
Peak PV qhib Circuit Court voltage | 100 V | ||||
static poob | Tsawg dua lossis sib npaug li 45 mA (12 V) Tsawg dua lossis sib npaug rau 37 mA (24 V) | ||||
Overvoltage tiv thaiv point | 16 V | ||||
Lub teeb tswj voltage point | 5 V | ||||
Kub them nyiaj coefficient | -4 Mv / degree / 2 V (25 degree) | ||||
Discharge Circuit Court voltage poob | Tsawg dua los yog sib npaug rau 0.2 V | ||||
Ua haujlwm kub | -20 degree ~ ntxiv rau 80 degree | ||||
Chav kawm tiv thaiv | IP 30 | ||||
Kev xaim | 10 m2/7 AWG | 16 m2/5 AWG | |||
Mounting qhov loj | 117 * 100 hli | 135 * 100 hli | 150 * 120 hli | 164 * 160 hli | |
Ф | F 5 mm | F 5 mm | F 5 mm | F 5 mm | |
Khoom Loj | 155.5 * 127 * 42.5 hli | 174.5 * 145 * 50 hli | 195 * 160 * 60 hli | 215.5 * 174 * 65 hli | |
Khoom hnyav | 360g ± 3 feem pua | 525g ± 3 feem pua | 835g ± 3%. | 1125g ± 3 feem pua | |
Cim npe nrov: mppt hnub ci nqi tus tswj
